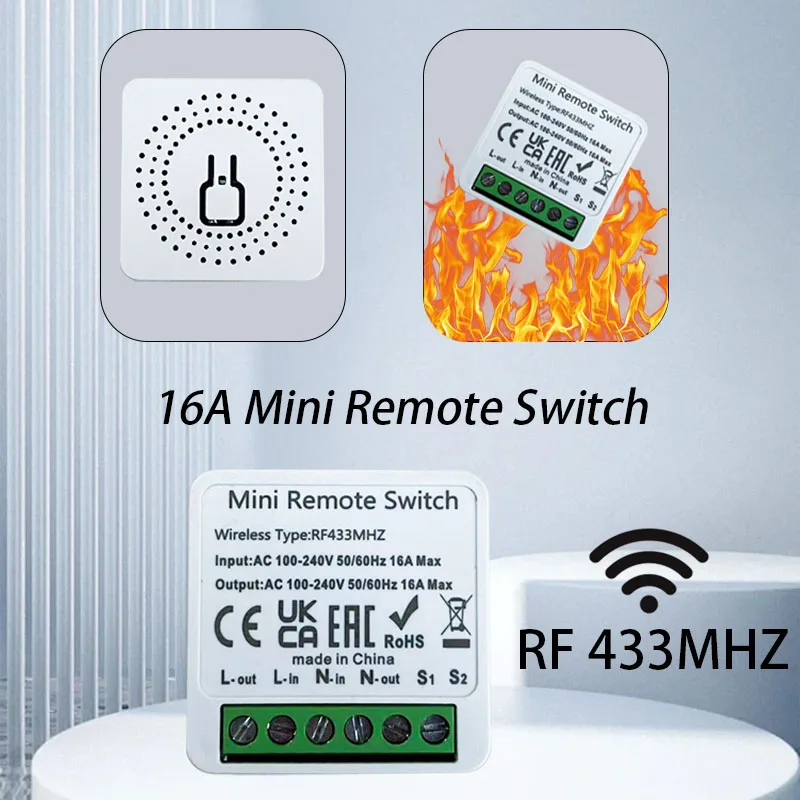

RF 433 MHz Smart Switch Mini DIY Wireless Remote Control Light Switches 16A Relay Receiver Automation Module for Home Led Lamp

Pairing method

(1) Pairing code – Only can set Toggle Mode

Manual pairing method: press the controller code key for 2 times and the LED flashes to enter the code matching mode.

At this time, press the remote control switch 2 times, and the light is successfully controlled and paired;

(2) Clearing mode

Manual code clearing method: press the controller key for 8 times,and the LED flashes to clear the code successfully.

Controller parameter
Working voltage: AC85-240V 60HZ/50HZ
Working frequency: 433.92MHZ
Power consumption in standby mode:<0.3W
Maximum current:10A
Receiving sensitivity: -108dBM
Working way: wireless control
Coding way: learning code
Modulation: ASK
Working temperature: -10℃~+70℃
Out size: 67*41.2*25.7(mm)
Body size: 47.4*41.2*25.7 (mm)
distance:20-100m(in open area)

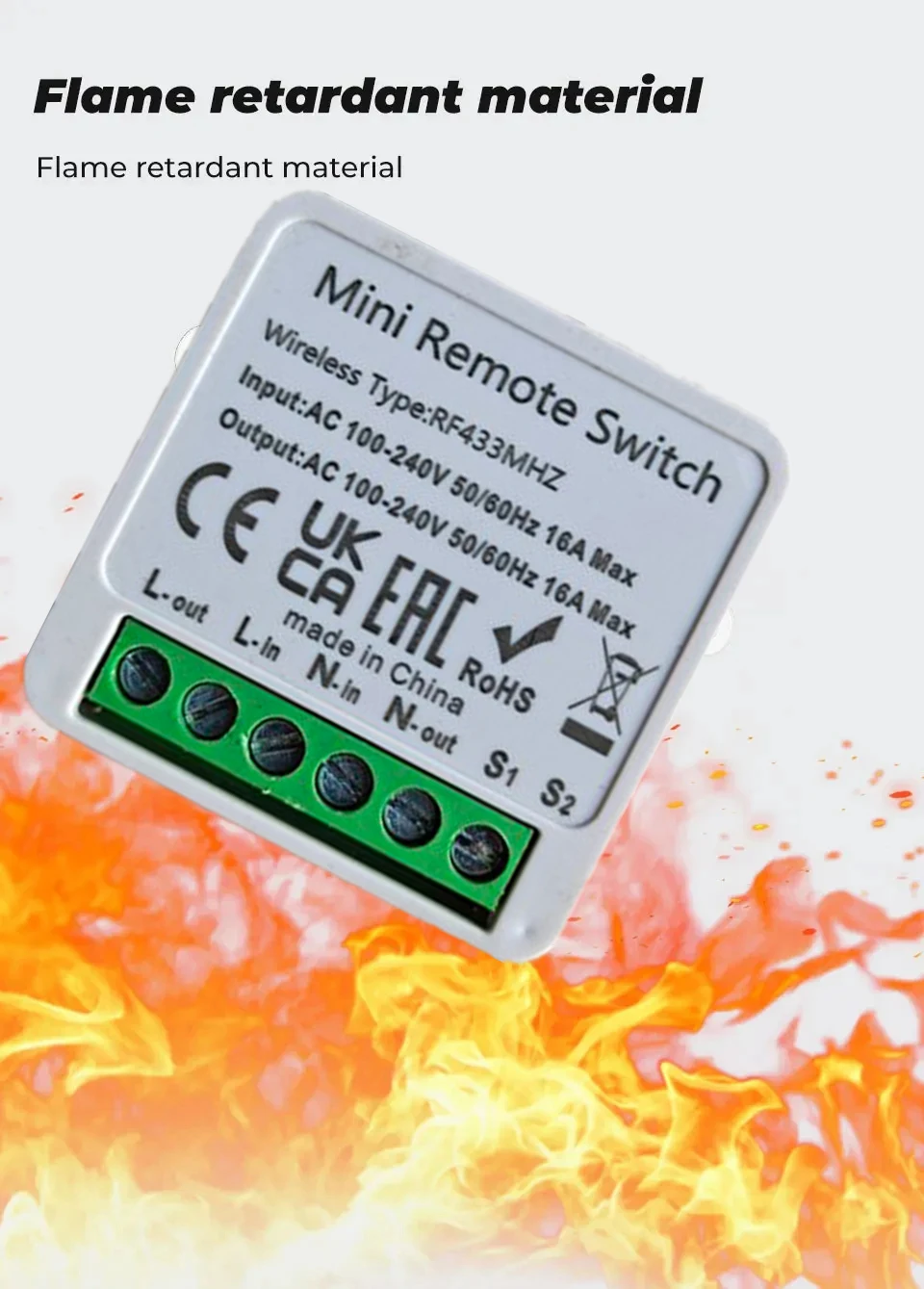

Controller Installation
(1) Connect the controller in series with the circuit of the lamp. Connect the fire wire to L and the neutral wire to N.

INPUT is connected to the input (input end), OUTPUT is connected to the output (lamp end); As shown below:

(2) After connecting the controller, it can be fixed in the appropriate position with the supplied double-sided tape or screw package.

Working Mode

Toggle mode:

Press A button,the relay will work, press A button again, this relay will stop.

Pairing method

(1) Pairing code – Only can set Toggle Mode

Manual pairing method: press the controller code key for 2 times and the LED flashes to enter the code matching mode.

At this time, press the remote control switch 2 times, and the light is successfully controlled and paired;

(2) Clearing mode

Manual code clearing method: press the controller key for 8 times,and the LED flashes to clear the code successfully.

Cautions

1) Please don’t operation in electricity and use it after testing.

2) Please change the battery in time (the remote control distance wil become closer when the voltage is insufficient)

3) When using wireless electronic products, please avoid metal masks, large electronic equipments, electromagnelic fields, etc.,

which have strong interference sources, to avoid remote control and short receiving distance or not working properly.

4) Do no use this electronic product abnormally. Abnormal use will reduce product performance and longevity.

Seriously damaged products may bring security risks.

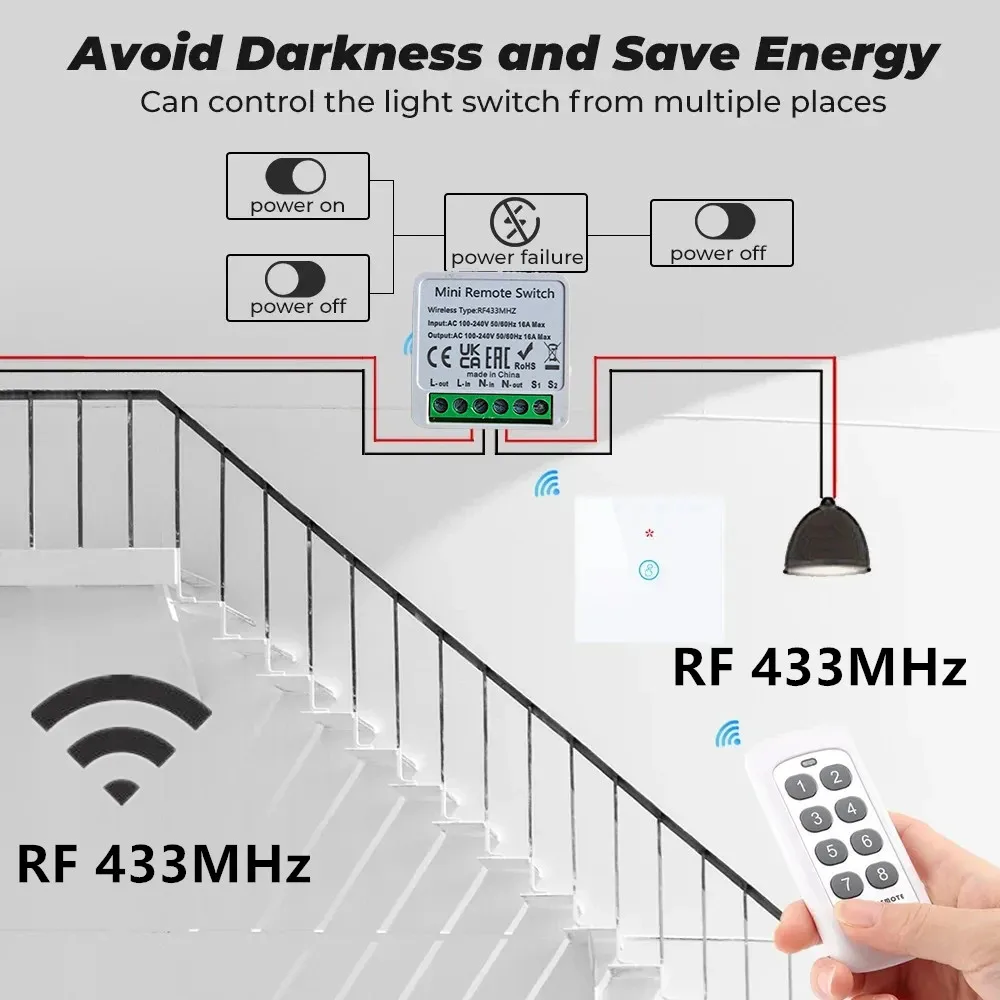

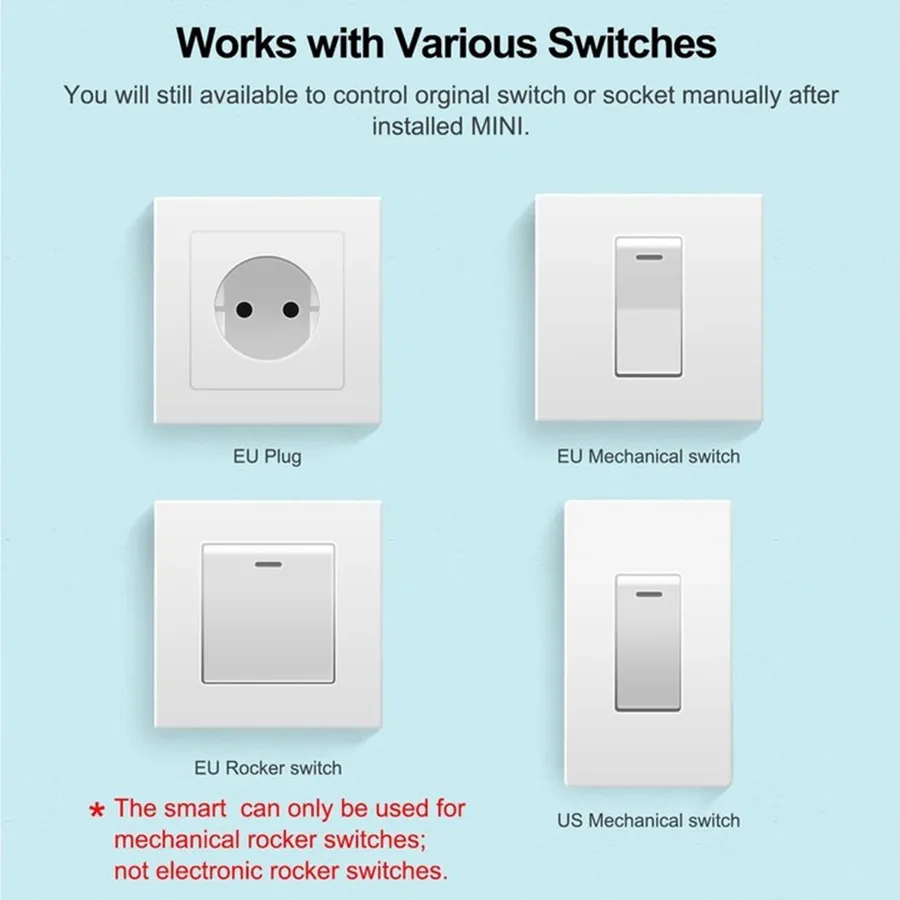

The mini controller is convenient and easy to install. No need to climb stairs, just install it in your own wall switch. Your own wall switch can also control the lights.

20~100M LONG RANGE (in Open area)
Tip: The obstacle will shorten the distance, the wireless signal is affected by the environment, the more obstacles, the shorter the distance.
note:
1.This controller will not be available if a wall switch with RF function is installed at home. Otherwise the function will be affected. Just need to buy a separate wireless switch
2. Do not operate with power. Turn off the power supply and operate it. If the test is confirmed to be correct, use it under the guidance of a professional electrician.
3. When the voltage of the remote control is insufficient, please change the battery in time (the remote control distance becomes closer when the remote control battery voltage is insufficient).
4. When using wireless electronic products, care should be taken to avoid metal masks, large electronic devices, electromagnetic fields, etc., which have strong interference sources, to avoid remote control and short receiving distance or to work normally.
5. Do not use this electronic product abnormally. Abnormal use will reduce product performance and longevity. In severe cases, damage to the product will also pose a safety hazard.
